SKU: 30942030

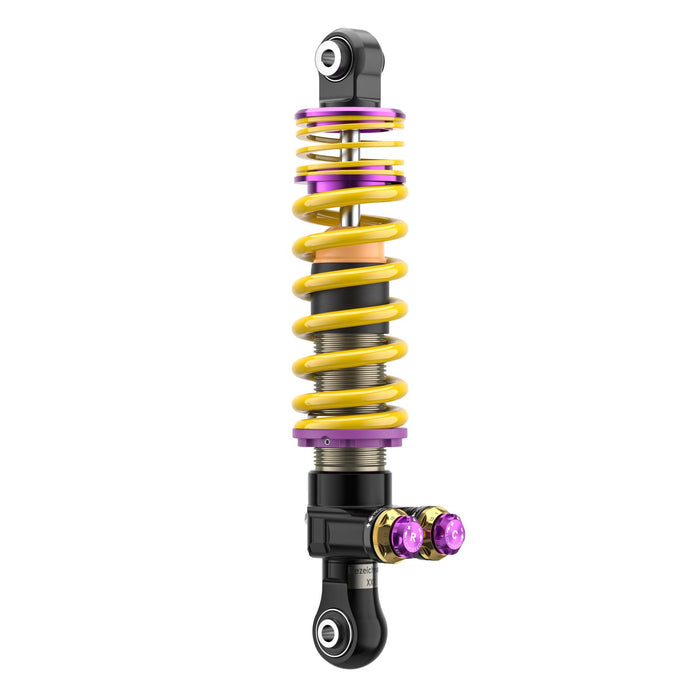

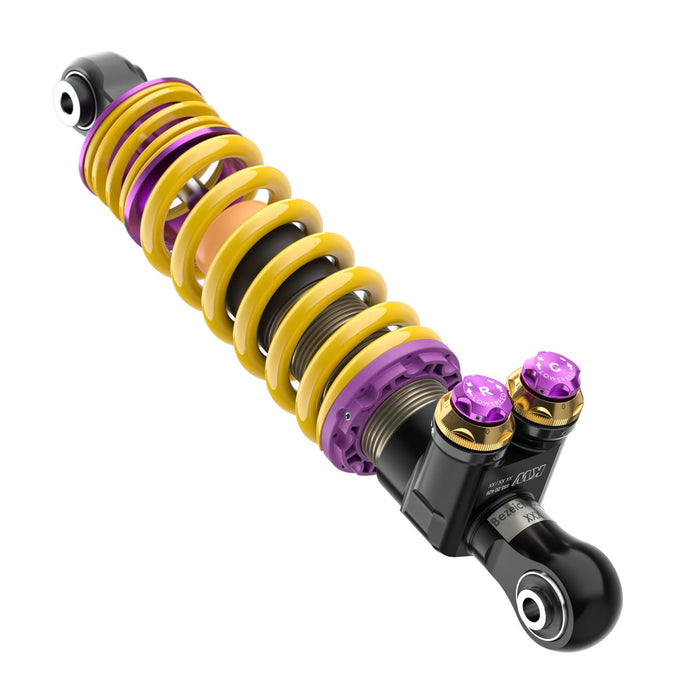

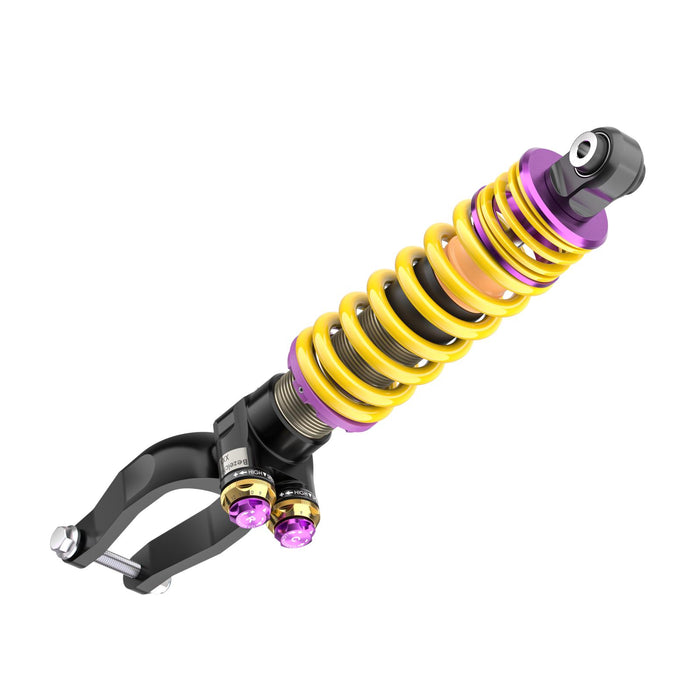

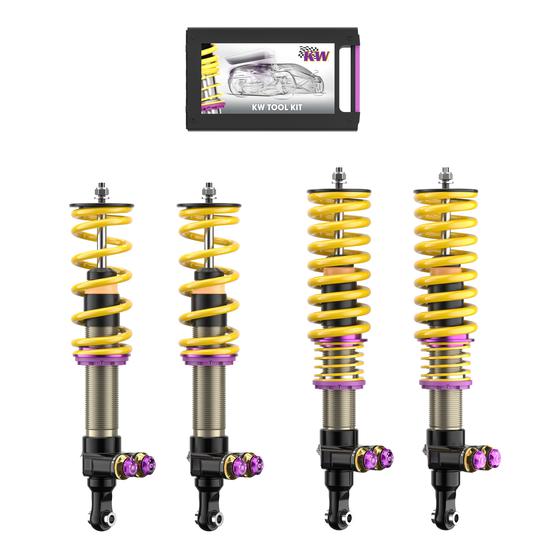

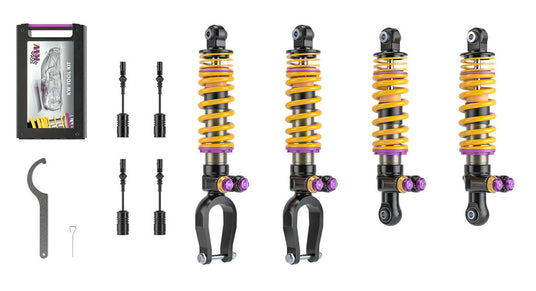

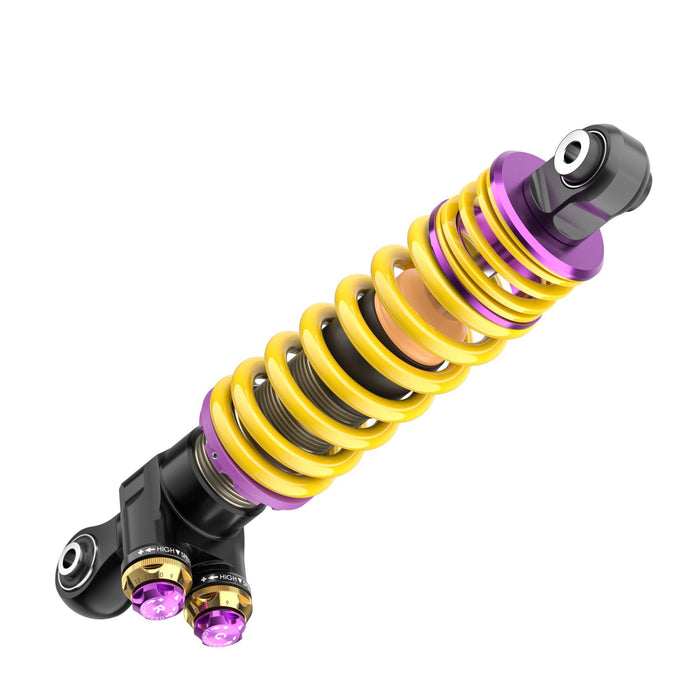

KW Coilover suspension V5 (incl. canceller kit for electronic suspension)
for

₱797,000.00
Including Canceller Kit

checking part compatibility......

Change Vehicle ∟

Photo is for visual reference only, Actual product may vary.

Want to learn more? Chat with us now!

We are happy to assist you. Talk to us!

Highlights
  • Height adjustable
  • “SPRLH-A”-technology 13 clicks low speed rebound adjustment
  • “SPRLH-A”-technology 13 clicks high speed rebound adjustment
  • “SPCLH-A”-technology 13 clicks low speed compression adjustment
  • “SPCLH-A”-technology 13 clicks high speed compression adjustment
  • External reservoir for additional cooling
  • INOX-LINE stainless steel construction
  • Composite spring seat
  • 7-post drive dynamics tested
  • Made in Germany
  • 2 years unlimited mileage warranty

The Perfect Suspension For Every Demand.

Ultra high performance technology (KW Solid Piston Technology) bred from GT3 motorsports. KW 4-way independently adjustable damper technology.

Customized suspension lowering

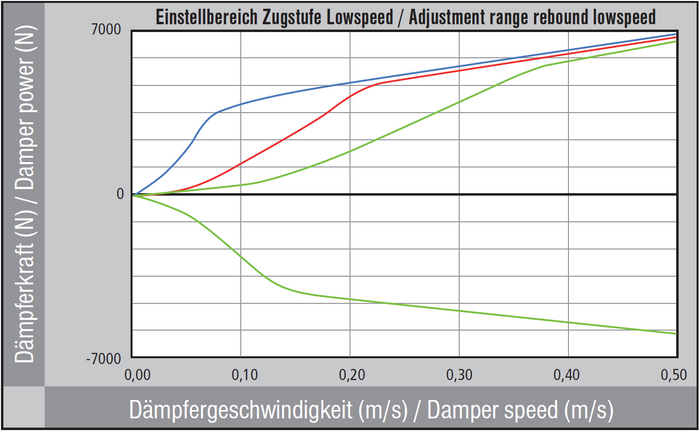

Rebound (Low&High)

Compression (High&Low)

Composite spring seat

Trapezoidal thread

7-post drive dynamics test stand

Technical component report

Reservoir

TTSP technology

Rebound damping

Compression damping

With the new KW V5 coilover kit, KW relies on its successful motorsport suspension technology with displacement pistons (KW Solid Piston Technology) and modular and series-connected damper valves. The KW V5 impresses in sports cars and super sports cars with precise and fast damping without delay. Even with short suspension travel, steering movements and minimal uneven road surfaces, the dampers and valves react directly. Every driving maneuver and every impulse, such as those caused by braking, accelerating, steering, load changes and bumps, are dampened much more precisely. The displacement piston dampers support the vehicle structure more optimally than conventional dampers and so, depending on the vehicle structure, lower spring rates can also be used.

- Setup -

Factory pre-configured damping setup with separate 4-way damper setting

In contrast to vibration dampers with overflowing working pistons, with KW coilovers and KW dampers with displacement piston structure (KW Solid Piston Technology) we use a valve arrangement that is separate from the inner damper tube and piston rod.

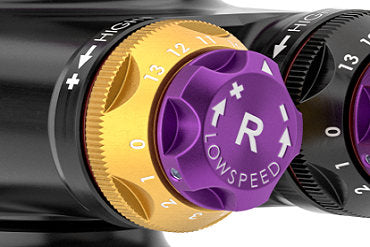

  • KW SPRLH-A rebound damping

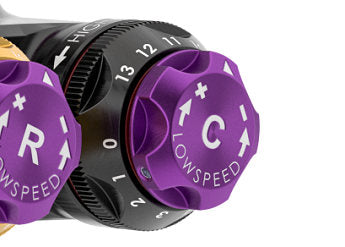

  • KW SPCLH-A compression damping

  • KW variant 5 in the Lamborghini Huracán

As a result, the KW V5 with adjustable KW SPCLH-A (KW Solid Piston Compression Low- and Highspeed Adjustable) compression damping and the KW SPRLH-A (KW Solid Piston Rebound Low- and Highspeed Adjustable) rebound damping offers significant added value: more sensitive damping, cavitation-free function , high-frequency damping, low-pressure gas range from 6 to 10 bar and low hysteresis.

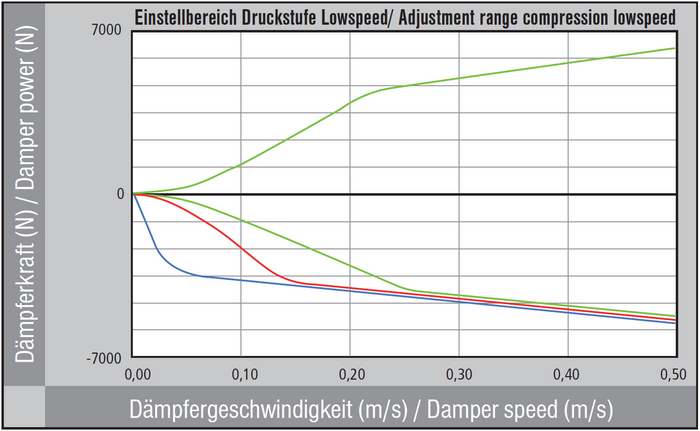

The low and high-speed valve units in the KW V5 coilover kit, which are built in series with different valve spring types and main valves, offer the freedom to individually adjust the compression and rebound damping with 13 exact clicks each (14 characteristic curves) in the low-speed and high-speed range. The KW displacement technology (KW Solid Piston Technology) can also cover a large force range in the design of the characteristic curve; in order to enable a completely new kind of harmonic damping.

Stepless lowering

The KW V5 enables a maximum or individual lowering in the tested setting range. Thanks to the dirt-resistant trapezoidal thread and the polyamide threaded ring, the stepless lowering can be varied quickly and easily, even after years

The benchmark for coilovers

As with all KW coilovers, KW engineers develop the vehicle-specific KW damper tuning, valued by car enthusiasts worldwide, in extensive test cycles on the Nürburgring Nordschleife and in our test center on the KW 7-post vehicle dynamics test bench. Experience your car more directly and dynamically with a KW coilover kit.

  • Vehicle-specific basic damper tuning

  • Assembly of the rebound valve

  • KW struts are made of stainless steel

After all, you are not buying just any coilover kit, but a KW coilover kit that has been specially developed and tuned for your vehicle type. As a manufacturer, KW only uses its own resources, high-quality components and the same damper technology as large-scale manufacturers. With the KW V5, the rolling and pitching movements of the vehicle body are reduced during compression, so you benefit from an unadulterated directness and sportier handling when driving.

Our experience for your driving pleasure

As a manufacturer of individual suspension solutions for the road and in racing, we have been the market leader and engine of innovation for over 20 years. No matter where in the world, sporty drivers, automobile manufacturers and refiners rely on our KW coilover kits "Made in Germany".

  • Vehicle-specific chassis development

  • Production directly in-house at KW in Fichtenberg

  • Every KW coilover kit is subjected to extensive load tests

Every KW coilover kit is subjected to extensive load tests during production and is developed and manufactured directly at our company headquarters in Fichtenberg in Swabia in order to meet the high standards of our KW quality management. For us as a German manufacturer, it is a matter of course to guarantee a multi-year guarantee on our KW coilover kits, which exceed OEM quality, and suspension solutions that include over 4,600 applications. It is up to five years for installation at one of our KW specialist dealers.
